HIGH SAFETY
Liquid-Cooled modules with IP 67 protection level, intelligent fire protection system design, multi-point monitoring and warning. Temperature difference of the cell is less than 3°C, excellent temperature homogeneity
OUTSTANDING EFFICIENCY

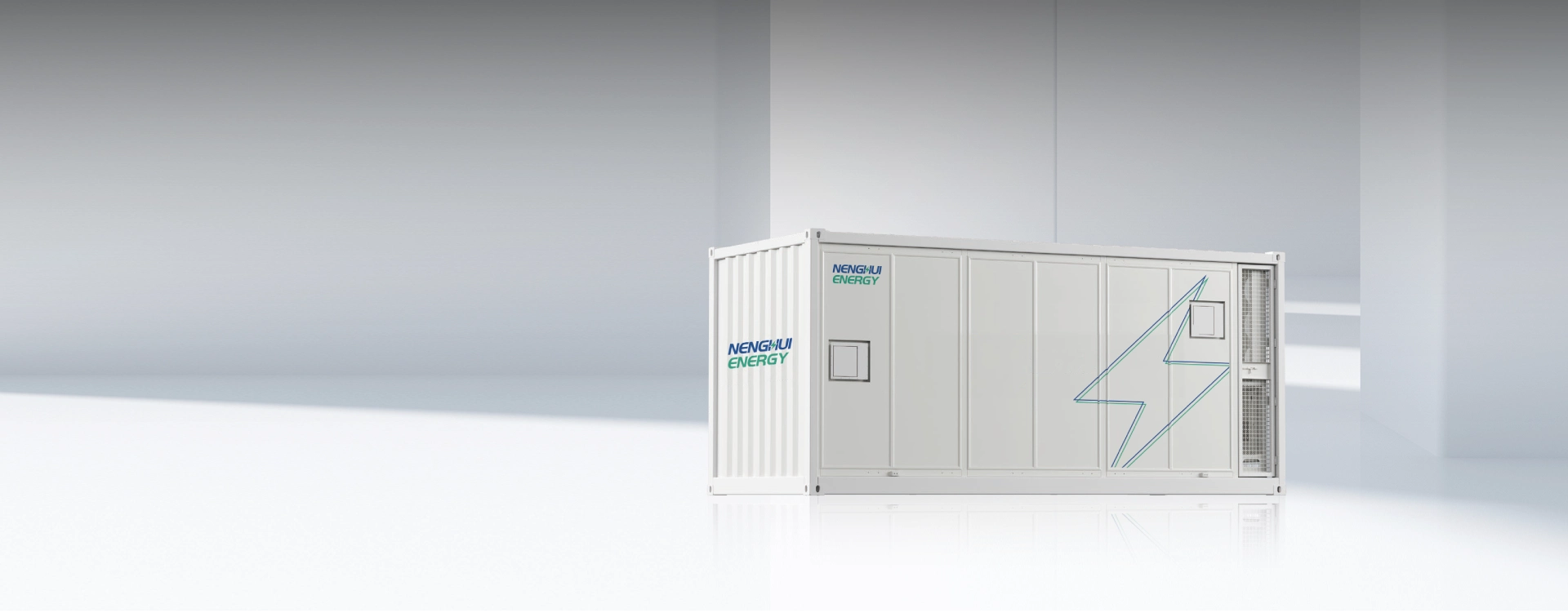

Represents the most advanced design implemented by NengHui to date, built on experience gained from over a hundred projects and multiple R&D iterations. The non-walk-in container features a modular design that facilitates fast project delivery while also reducing installation and maintenance costs.
EXTENDED SERVICE LIFE
Liquid-Cooled batteries with a cycle life of over 6000 cycles, high efficiency and a design life of up to 15years.Offers high energy density and system integration, maximizing life cycle returns through reduced operational and maintenance costs.

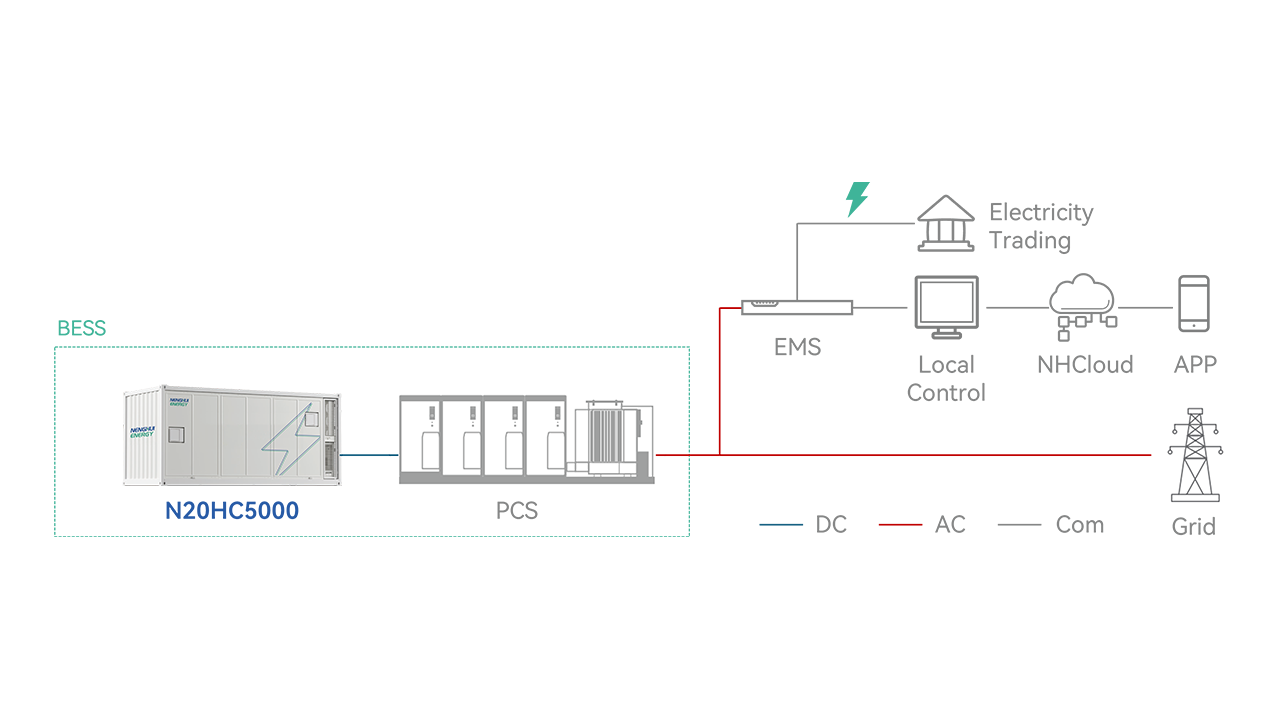

USAGE SCENARIO
Off-grid PV, energy storage, diesel generation, and charging post
TECHNICAL SPECIFICATION
Battery Module parameters
Combination Model | 1P48S |
Standard charge - discharge rate | 0.5C (Optional 1C) |
Rated energy | 43.01kWh |
Nominal voltage | 153.6V |
Charge and discharge efficiency | ≥93%@25±3℃ |
Thermal management mode | Liquid cooling |
Temperature difference of a single battery pack cell | ≤3℃ |
IP rating | IP67 |
Battery charge operating temperature | 0℃ - 55℃ |
Battery discharge operating temperature | -20℃ - 55℃ |
Storage temperature | -10℃ - 50℃ |
Dimensions (W*H*D) | 810*254.5*111.5mm |
Weight | 340kg |
Battery cluster parameters
| Combination Model | 1P416S |
| Standard charge-discharge rate | ≤0.5C |
| Rated energy | 418kWh |
| Nominal voltage | 1331.2V |
| Charge and discharge efficiency | ≥92%@25±3℃, 0.5C(excluding auxiliary power consumption) |
| Thermal management mode | Liquid cooling |
| Communication mode | CAN |
| Battery charge operating temperature | 0℃ - 55℃ |
| Battery discharge operating temperature | -20℃ - 55℃ |
| Storage temperature | -10℃ - 50℃ |
| Storage humidity | 0 - 95% (no-condensing) |
| Altitude | ≤3000m (derating>2000m) |
Container system parameters
| Combination Model | 12P416S |
| Standard charge-discharge rate | ≤0.5C |
| Rated energy | 5015.96kWh |
| Nominal voltage | 1331.2V |
| Charge and discharge efficiency | ≥92%@25±3℃, 0.5C(excluding auxiliary power consumption) |
| Thermal management mode | Liquid cooling |
| Communication mode | CAN/RS485/Ethernet |
| IP rating | IP55 |
| Battery charge operating temperature | -30℃ - 55℃ |
| Battery discharge operating temperature | -30℃ - 55℃ |
| Storage temperature | -10℃ - 50℃ |
| Dimensions (WDH) | 605824382896mm |
| Weight | <43T |
| Storage humidity | 0 - 95% (no-condensing) |
| Altitude | ≤3000m (derating>2000m) |
| Compliance | IEC 62477-1, IEC 61000-6-2/4, IEC62619, UN3536 |
